OneDrive

Contents

Info

This is a OAuth connector, authentication requires creation and use of OAuth users.

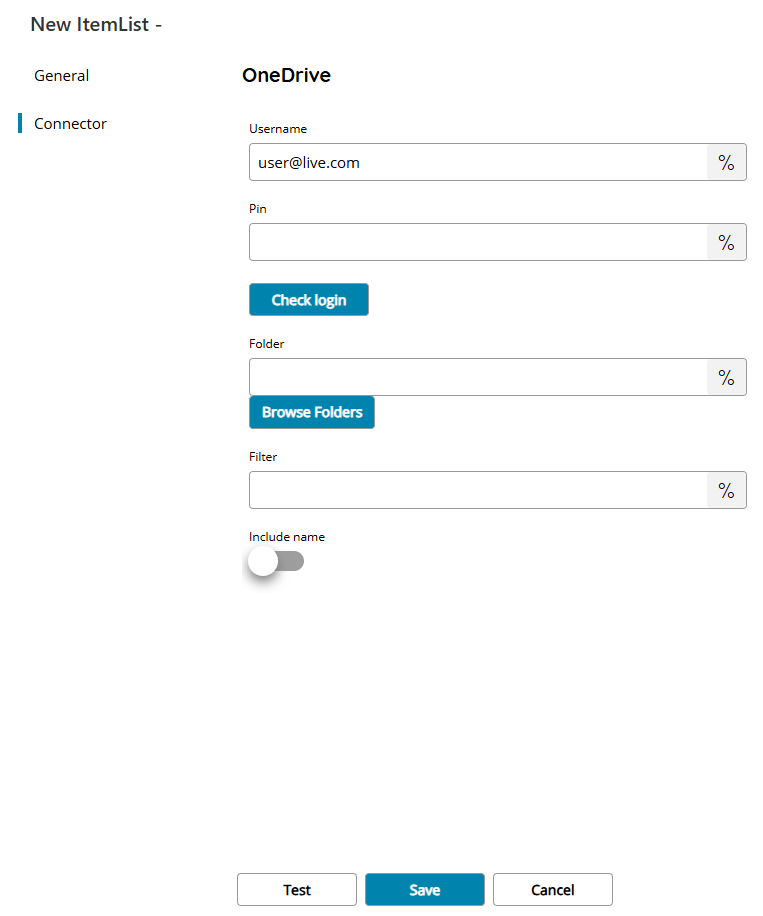

Front

itemlists_onedrive

Username
Enter your OneDrive email address here, or click on the Variables button on the right, to select a variable which will contain the email address.

Info

This is the username used when creating the OAuth user and not the OneDrive username.

PIN
Enter your OneDrive PIN here, or click on the Variables button on the right, to select a variable which will contain the PIN. (PIN will be created in OAuth User settings).

Check login
If you select this button, Scanshare will try to establish a connection with OneDrive using the username and password you provided above.

Folder
Enter the main folder to browse in OneDrive, select a folder by pressing the browse folders button or click on the Variables button on the right, to select a variable which will contain the folder.

Filter
Enter a keyword here to filter returned OneDrive folders, or click on the Variables button on the right, to select a variable which will contain the filter.

Note

This connector is supporting Selected (with tree) recursive item lists. Check how to crate a New Item List.

Store

Username
Enter your OneDrive email address here, or click on the Variables button on the right, to select a variable which will contain the email address.

Info

This is the username used when creating the OAuth user and not the OneDrive username.

PIN
Enter your OneDrive PIN here, or click on the Variables button on the right, to select a variable which will contain the PIN. (PIN will be created in OAuth User settings).

Check login
If you select this button, Scanshare will try to establish a connection with OneDrive using the username and password you provided above.

Folder
Enter the folder where to upload the document into or select a folder by pressing the browse folders button or click on the Variables button on the right, to select a variable which will contain the folder.

The Folder can be a single direct folder or a full path composed by subfolders separated by / (forward slash). Each folder, either a single folder or part of the path, can be an ID returned by the front connector return items folders or a named folder. If a folder doesn’t exist it will be created, at any level of the path. Also the full path can be created if not existing.

Filename
Enter the filename for the document to upload to OneDrive, or click on the Variables button on the right, to select a variable which will contain the filename.

Document upload test
By clicking this button, a window will open where you can select a document to upload to OneDrive. It is also possible to drag and drop a file into this box which will be uploaded to OneDrive as well. A sample upload will be performed into the target Folder.

Info

The sample upload is actually uploading the sample document into the target OneDrive account. Make sure to remove the document afterwards if not needed.
